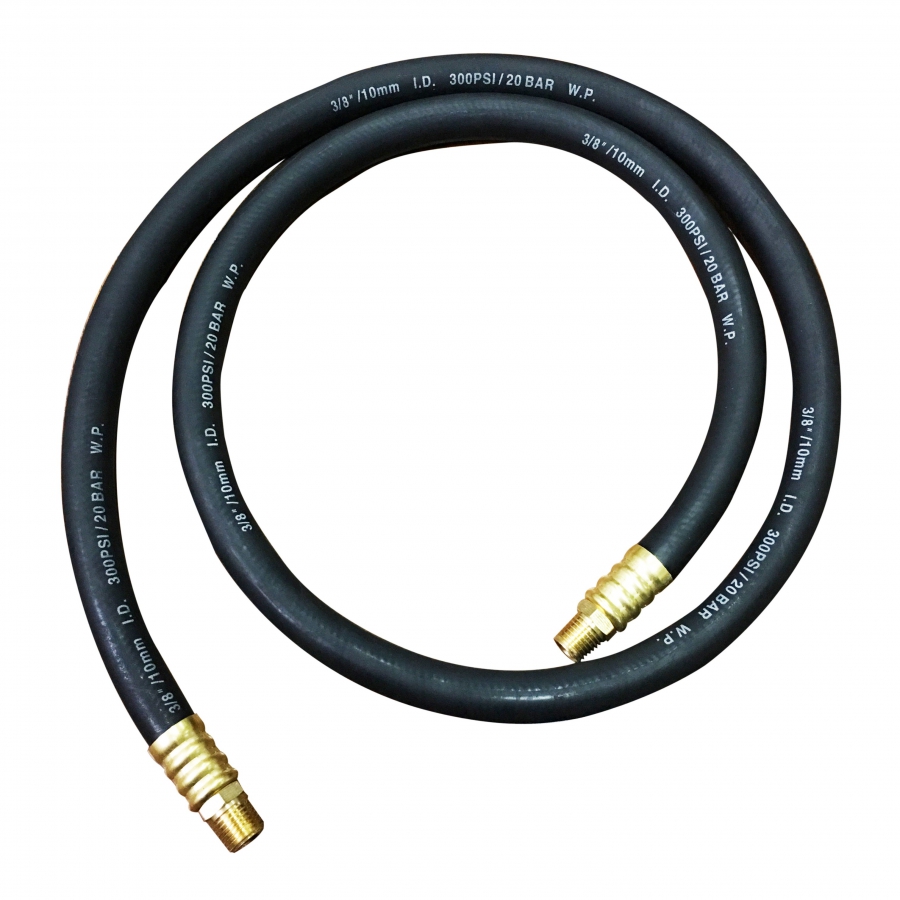

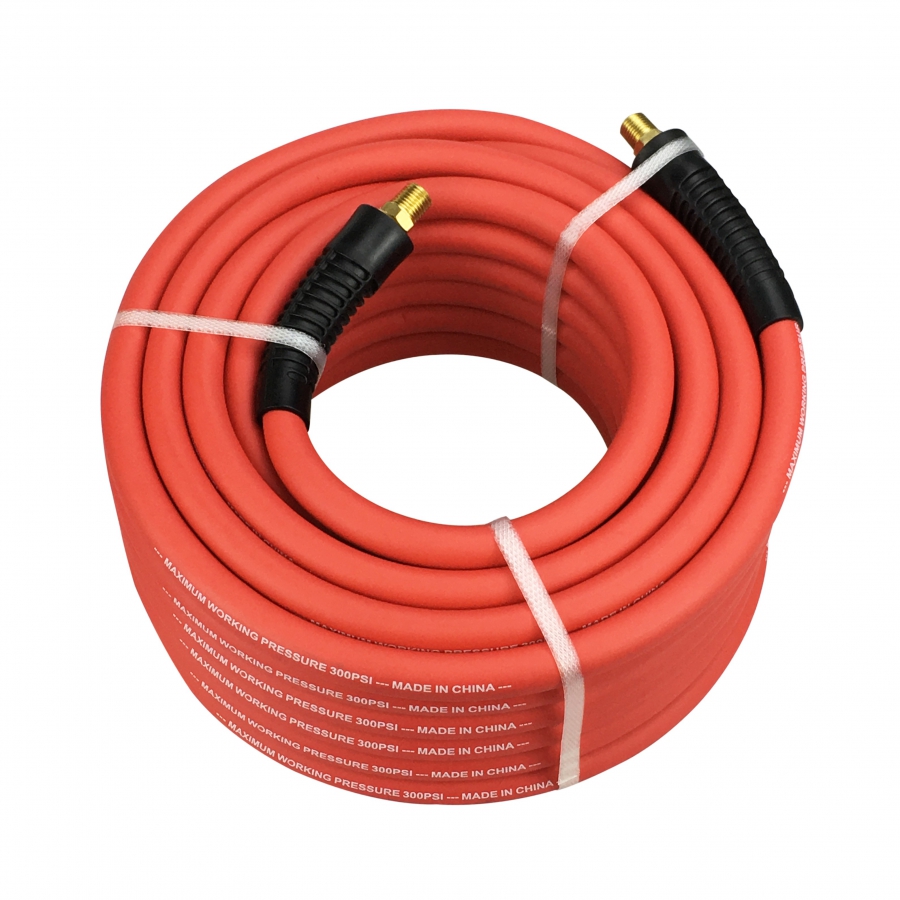

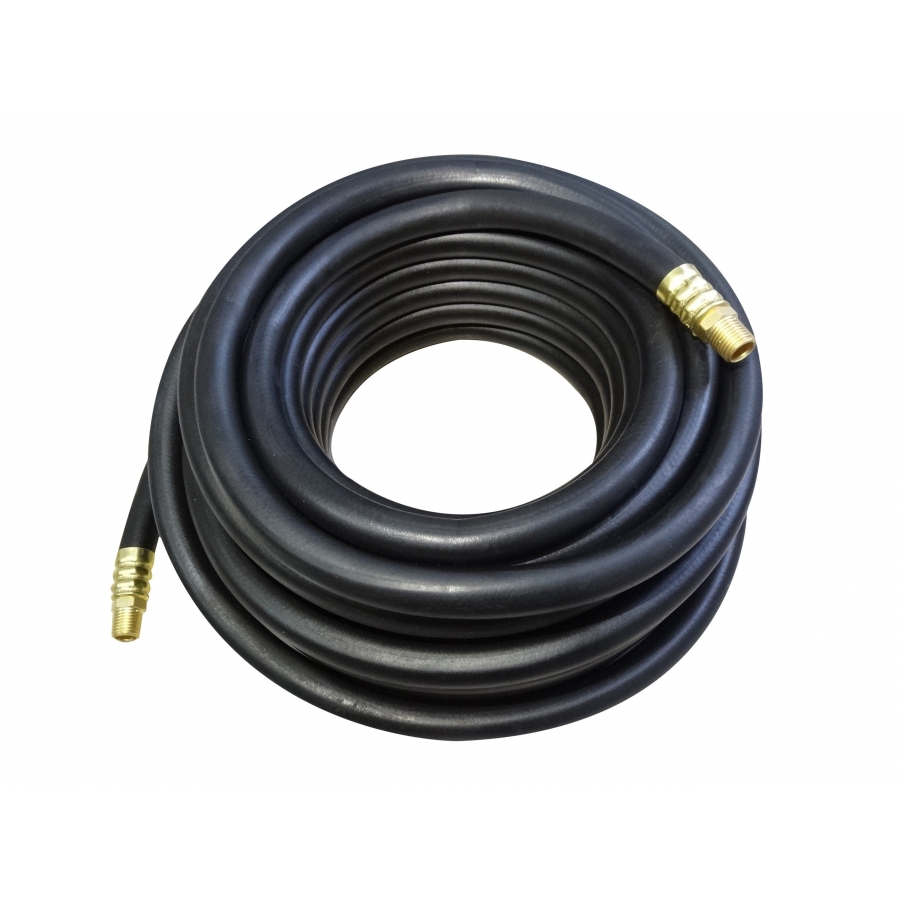

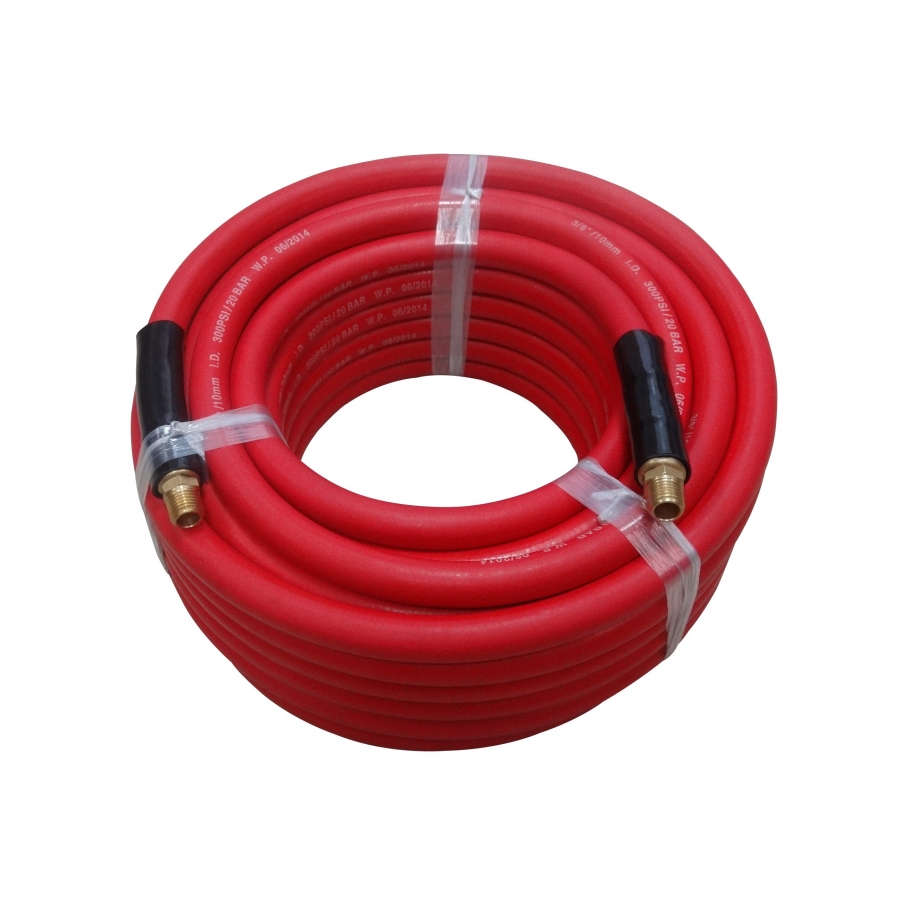

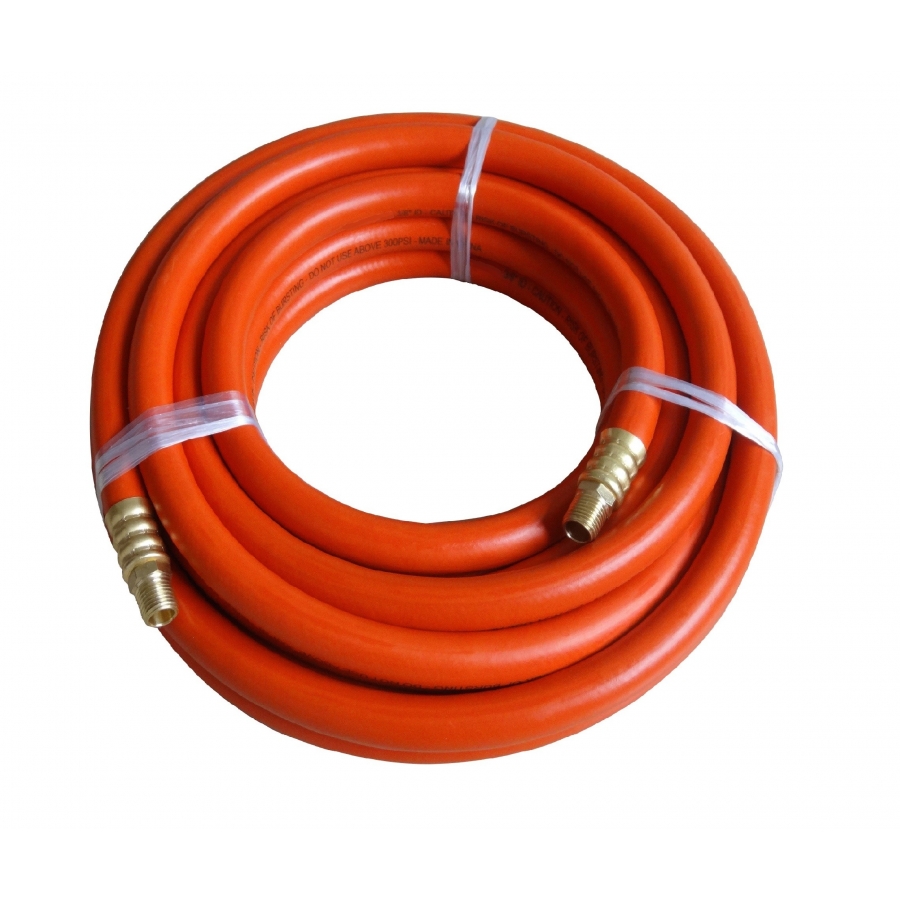

Heavy Duty EPDM + NVNBR Multipurpose Hose

Anti-Ozone & Aging, Flame Retartant - RMA Class C


Heavy Duty EPDM + NVNBR Multipurpose Hose is made for a wide range of applications requiring a maximum pressure of 300 psi. Its EPDM (Ethylene-Propylene-Diene Monomer) rubber tube has a Rubber Manufacturers Association (RMA) Class C, limited oil resistance rating, which means that it will undergo a maximum volume change of +100% and maintain at least 40% of its tensile strength after exposure to oil. Its cover is made of NVNBR(PVC+NBR), which is the nitrile rubber and polyvinyl chloride mixed in liquid copolymerization, we also call it alloy rubber. It is for resistance to heat, aging, ozone, oil and chemicals, as well as the tensile stress, tear resistance and abrasion resistance. It is capable of functioning effectively at temperatures ranging from -40°F to +190°F (-40 to +88 °C). This hose is suitable for a wide range of industrial, construction, and agricultural applications.


 Product Construction :

■ Cover  &  Tube:  NVNBR (PVC+NBR)

                                EPDM (Ethylene-Propylene-Diene Monomer)

■ Reinforcement:  High density polyester yarn braiding

.

 Product Features :

■ Ant-Ozone and Anti-Aging, Flame retartant

■ Abrasion resistant, weather resistant, heat resistant, oil and chemicals resistant

■ Its of pressure bearable, flexible, anti-bending, less distortion and nice smooth surface

■ Heavy duty air and water hose for a wide range of industrial, construction, and agricultural applications

■ 300 PSI working pressure, 1200 PSI bursting pressure

■ Temperature range: -40°F to +190°F (-40°C to 88° C)

■ Brass fittngs 1/4 in.   3/8 in.  1/2 in.  air inlet MNPT (Plug and Coupler are available)

■ Comfortable bend restrictors/ PVC sleeves on each end to protect fittings from damage,and keep hose from kinking near fitting.


 Product Choices :

※ Heavy Duty EPDM + NVNBR Multipurpose Hose is available in wide variety of Lengths, Sizes, Colors and Fittings to meet all your needs

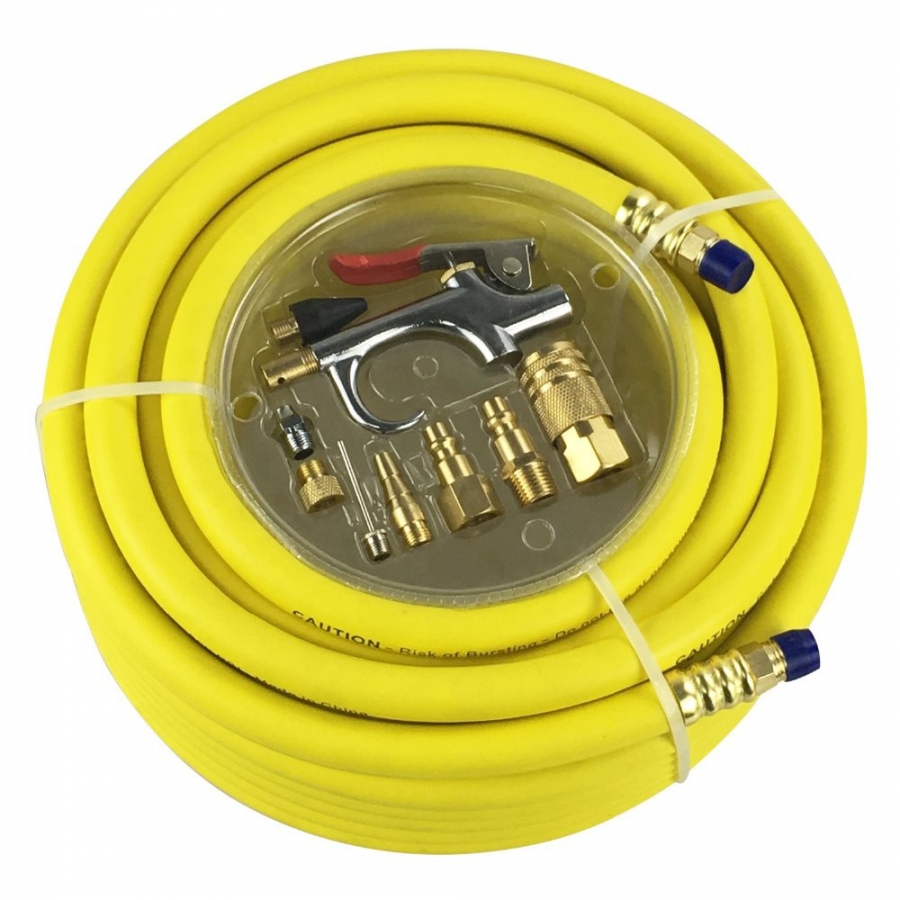

※ Air Hose with Accessory Kits are available

※ Bulk Hose with Plastic / Wooden Reel is available


Item No.
Hose I.D.
Hose Length
Working Pressure
Fittings
BTEPD14025
1/4 in.
25 ft.
200 / 250 / 300 psi
1/4 in. MNPT
BTEPD140501/4 in.
50 ft.
200 / 250 / 300 psi1/4 in. MNPT
BTEPD141001/4 in.
100 ft.
200 / 250 / 300 psi1/4 in. MNPT
BTEPD380253/8 in.
25 ft.
200 / 250 / 300 psi1/4 in. MNPT
BTEPD380503/8 in.
50 ft.
200 / 250 / 300 psi1/4 in. MNPT
BTEPD381003/8 in.
100 ft.
200 / 250 / 300 psi1/4 in. MNPT
BTEPD120251/2 in.
25 ft.
200 / 250 / 300 psi3/8 in. MNPT or 1/2 in. MNPT
BTEPD120501/2 in.
50 ft.
200 / 250 / 300 psi3/8 in. MNPT or 1/2 in. MNPT
BTEPD121001/2 in.
100 ft.
200 / 250 / 300 psi3/8 in. MNPT or 1/2 in. MNPT
