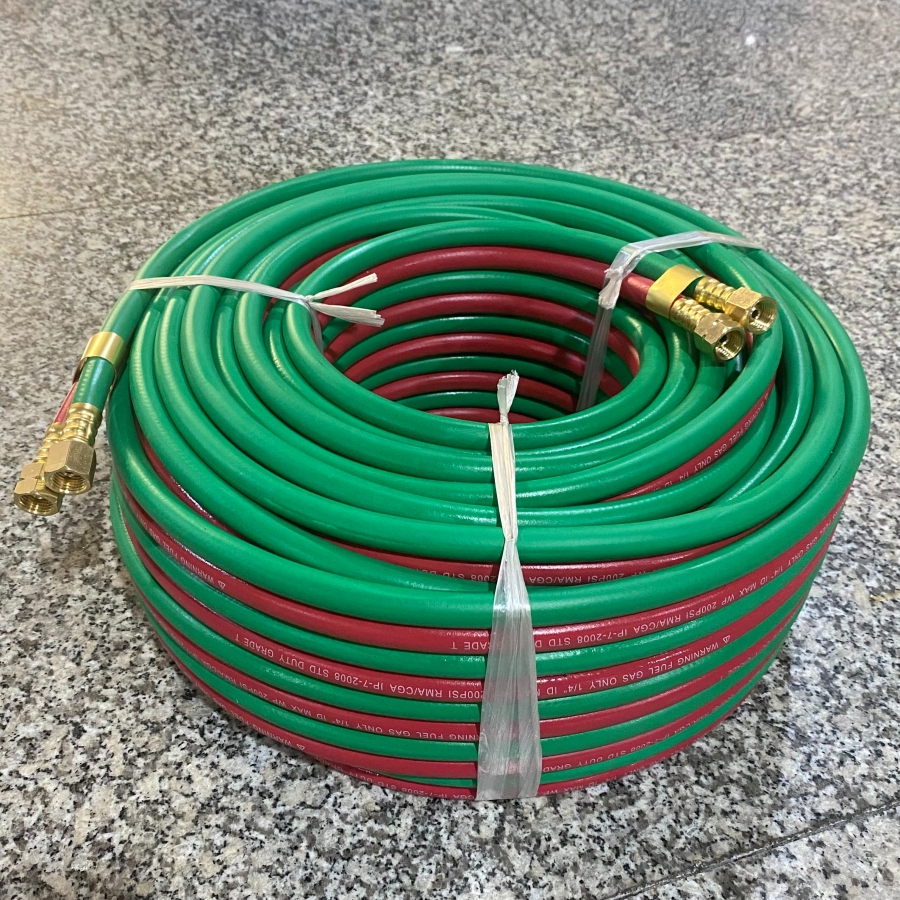

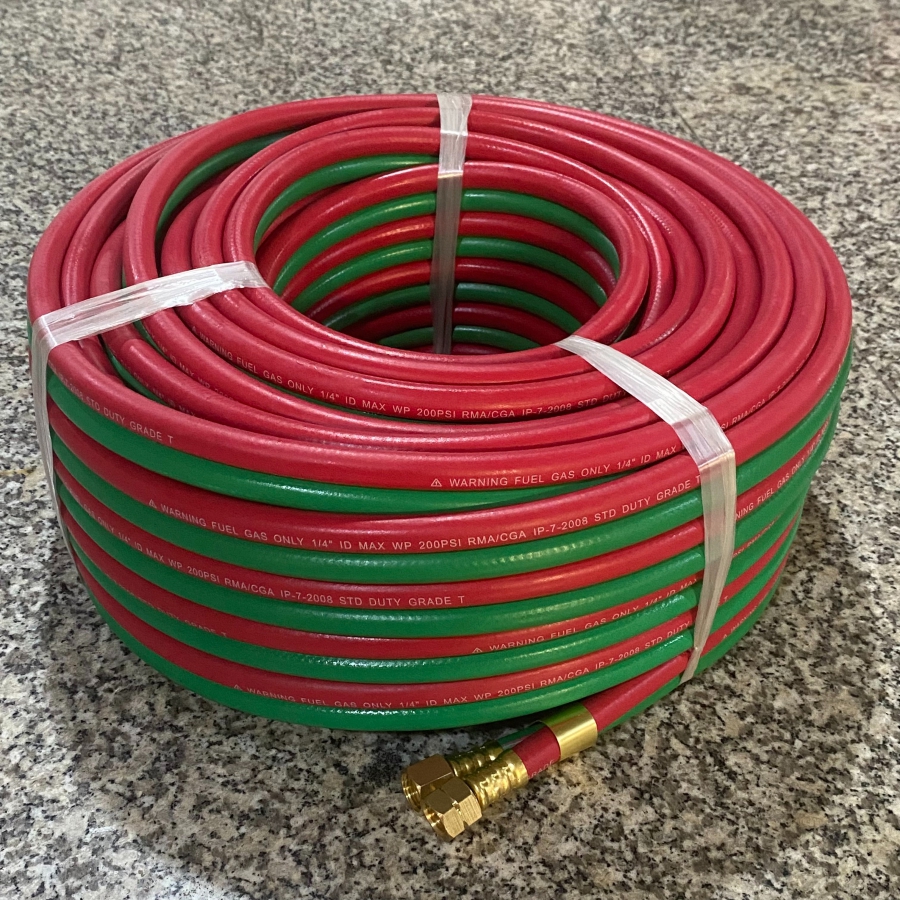

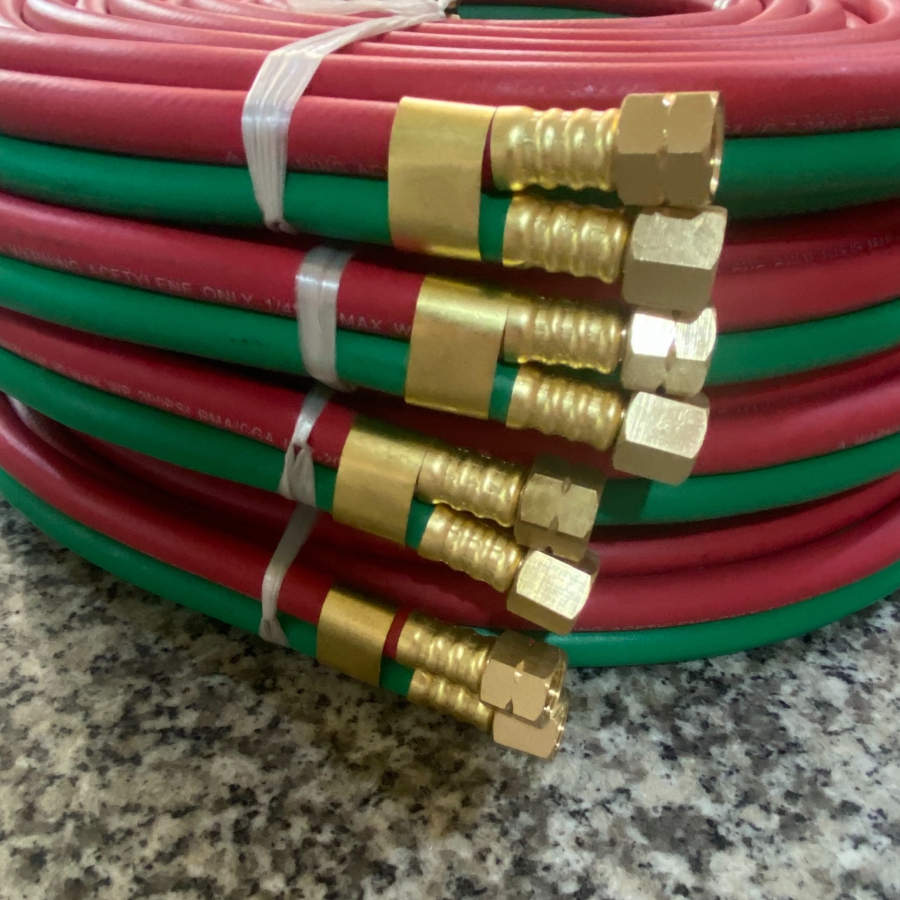

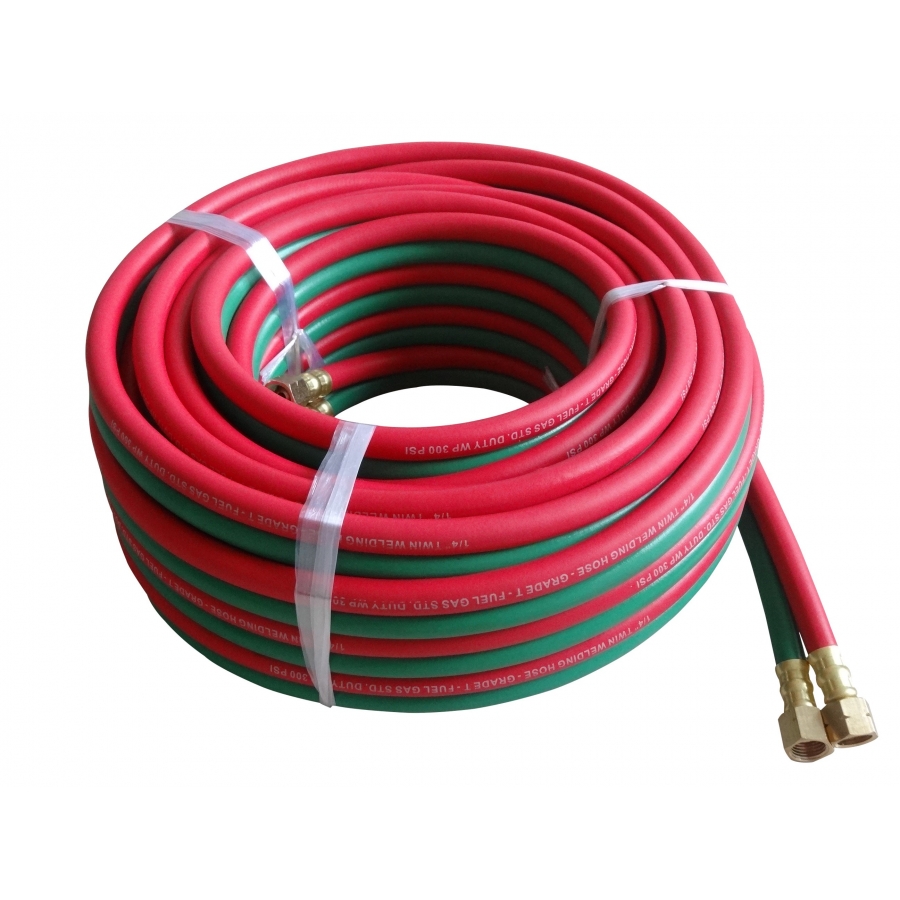

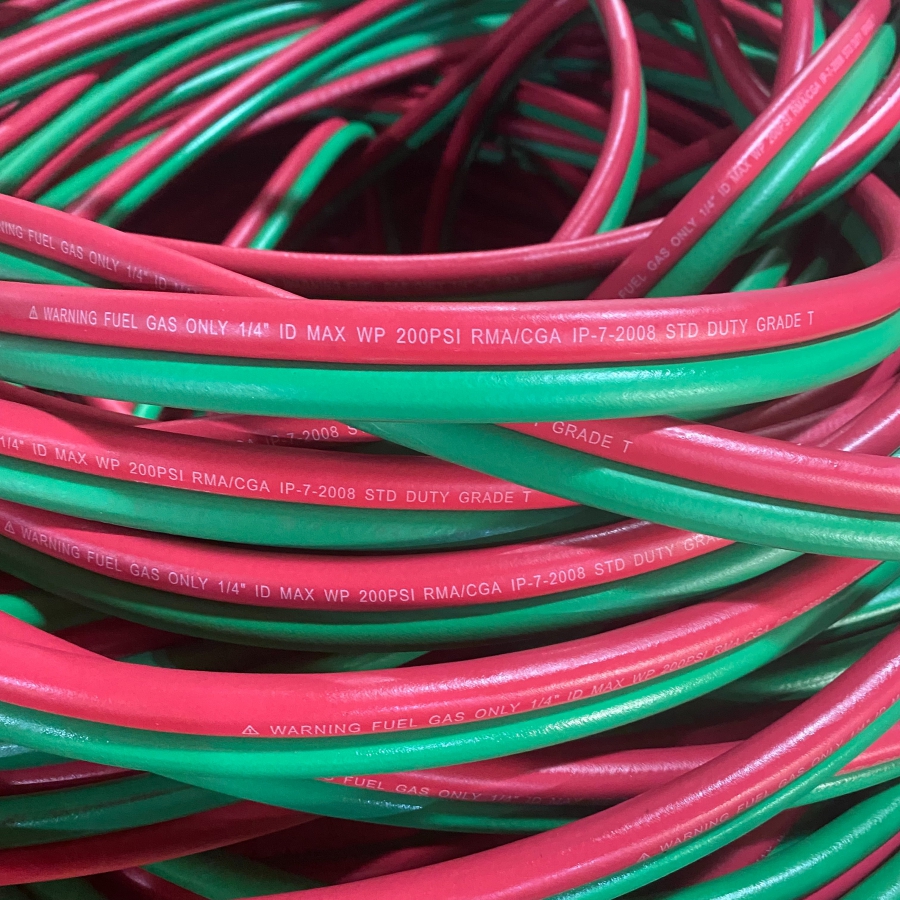

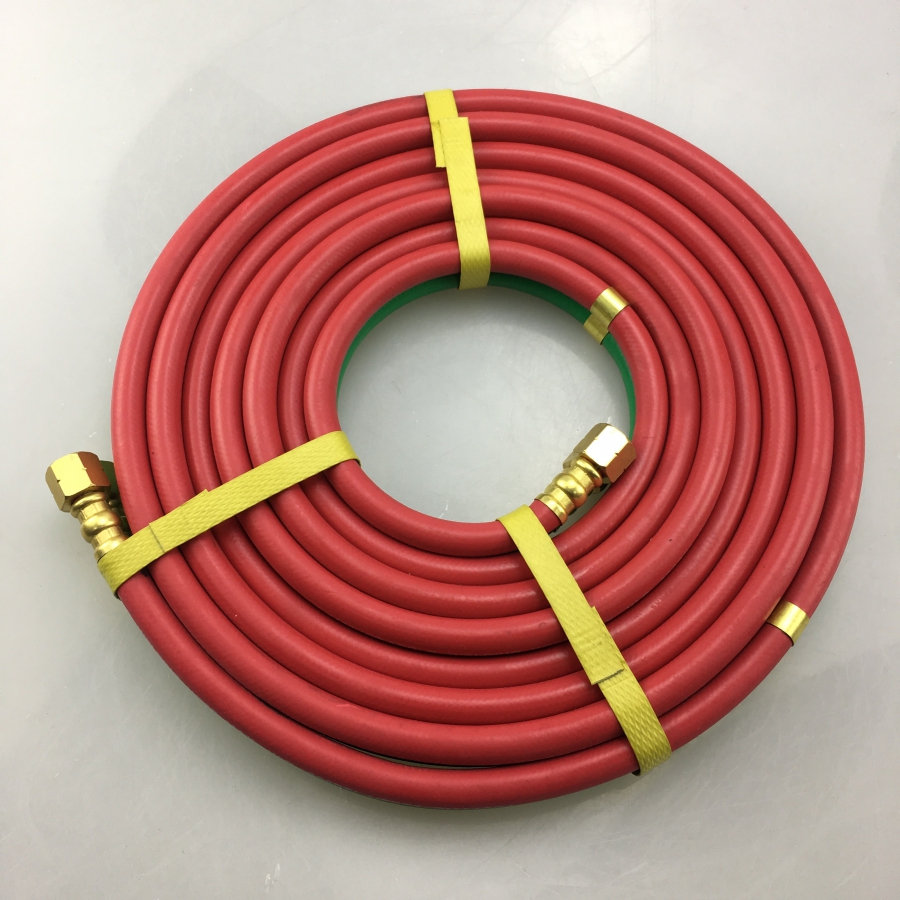

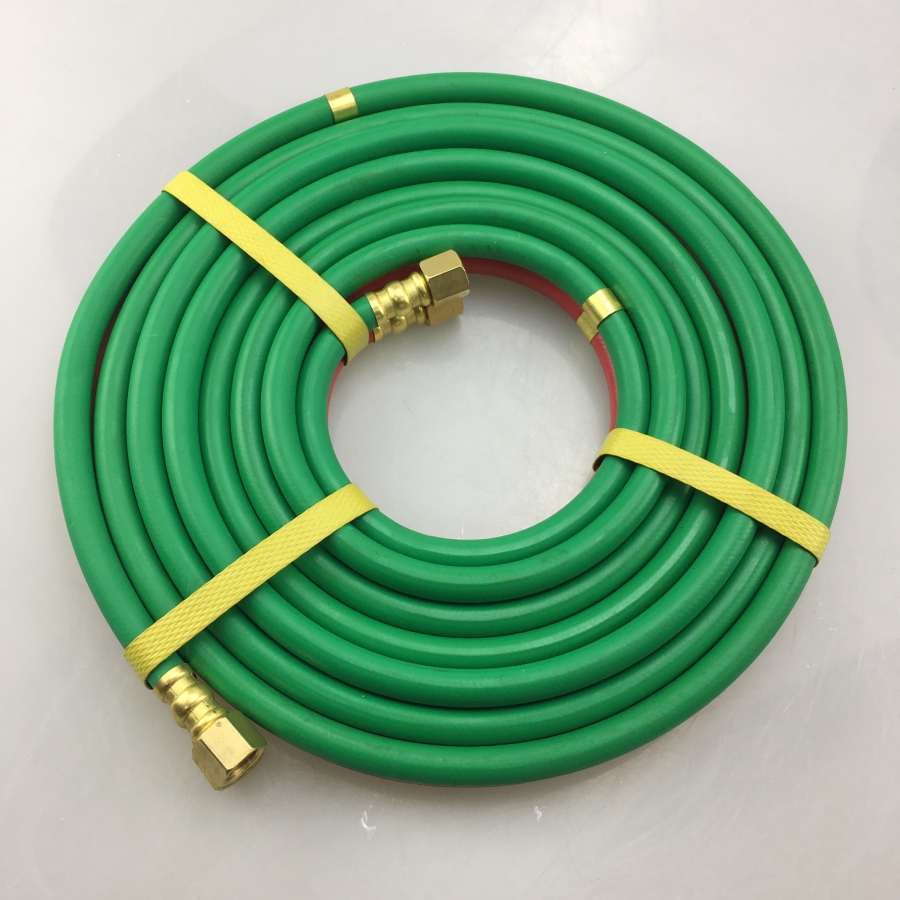

Grade T Welding Hose

Grade T Welding Hose is applied to the circulation of such fuel gases as liquefied petroleum gas (LPG), MPS (propene and propadiene blends), natural gas (CNG) and methane(CH4), it can be also used to circulate the gases applied to the grade R welding hose. The Grade T Welding Hose is in line with the requirements of RMA/CGA. Non-conducting. Both the inner layer and protective layer of rubber hose of this grade are oil and flame resistant. It is made of Nitrile Butadiene Rubber and butyronitrile polyvinyl chloride blends (NBR&PVC) or chloroprene rubber (CR) with high density polyester yarn braiding reinforcement which can withstand the max bursting pressure up to 900 PSI. Features Oil and flame resistant, anti-Aging and Ozone, anti-acetone corrosion. Green for Oxygen with right hand thread fittings and Red for Acetylene Fuel gas with left hand thread fittings to prevent improper hose connection for your safety. It is widely applied to NC flame cutter, plasma cutting machine, equipment complex and steel structure. Such as Braze welding, Heating and Gas Cutting of pressure control devices.

 Product Construction :

■ Cover  &  Tube: NVNBR (PVC+NBR) or CR (Chloroprene Rubber)

                               NBR (Nitrile Butadiene Rubber)

■ Reinforcement: High density polyester yarn braiding
